Advanced Heatmap Visualization • signals

library(signals)
library(dplyr)

Introduction

The signals package provides powerful heatmap visualization capabilities for copy number data.

Gene annotations: Highlight specific genes of interest at the top of the heatmap
Chromosome ideogram: Display cytoband patterns and centromeric regions
Full genome visualization: Show all genomic bins including centromeric regions

These features work with any copy number data, not just haplotype-specific or allele-specific calls. This makes them useful for visualizing total copy number profiles from any single-cell DNA sequencing technology.

Setup and Data

We’ll use the included CNbins test data, which contains copy number calls for 250 cells across all human chromosomes. First, let’s load the data and create a clustering for organized heatmap visualization.

data(CNbins)
CNbins <- CNbins %>% filter(chr != "Y")
head(CNbins)
#>   chr   start     end reads     copy state               cell_id
#> 1   1 2000001 2500000   536 2.960868     2 SA921-A90554A-R03-C44
#> 2   1 3000001 3500000   499 2.603584     2 SA921-A90554A-R03-C44
#> 3   1 4000001 4500000   569 2.216388     2 SA921-A90554A-R03-C44
#> 4   1 4500001 5000000   524 2.039672     2 SA921-A90554A-R03-C44
#> 5   1 5000001 5500000   576 2.210792     2 SA921-A90554A-R03-C44
#> 6   1 5500001 6000000   516 2.028686     2 SA921-A90554A-R03-C44

clustering <- umap_clustering(CNbins, field = "copy")

The umap_clustering() function performs UMAP dimensionality reduction followed by HDBSCAN clustering. This produces a phylogenetic tree and cluster assignments that organize cells by similarity.

Basic Heatmap (Baseline)

Let’s start with a standard heatmap.

plotHeatmap(CNbins,
            tree = clustering$tree,
            clusters = clustering$clustering)

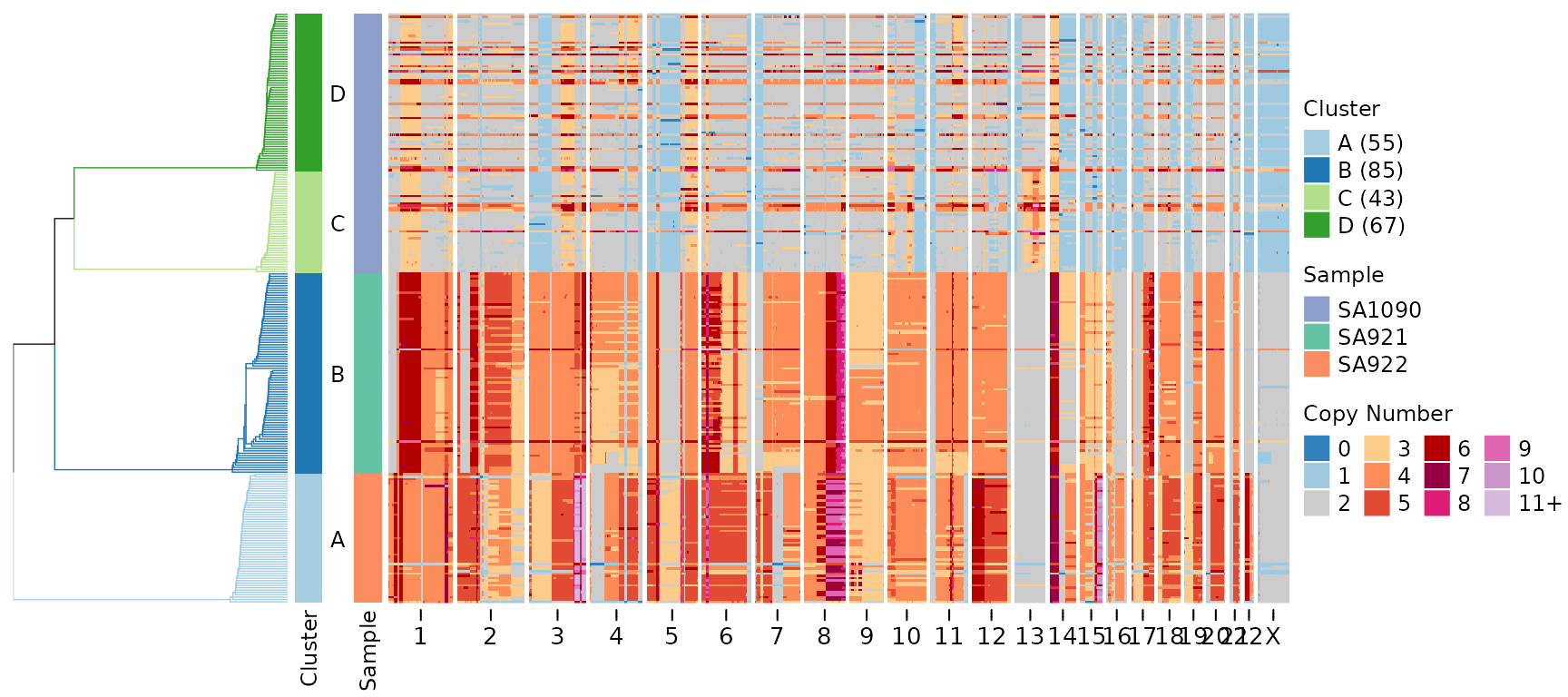

This heatmap shows copy number states across all genomic bins (columns) and all cells (rows). Cells are organized by the hierarchical clustering tree (displayed on the left). The color scheme represents copy number states, with blue indicating losses and red indicating gains.

Gene Annotations

The gene_annotations parameter highlights specific genes of interest on the heatmap. This is useful for focusing on known cancer-associated genes or other loci of biological significance.

Single Gene Annotation

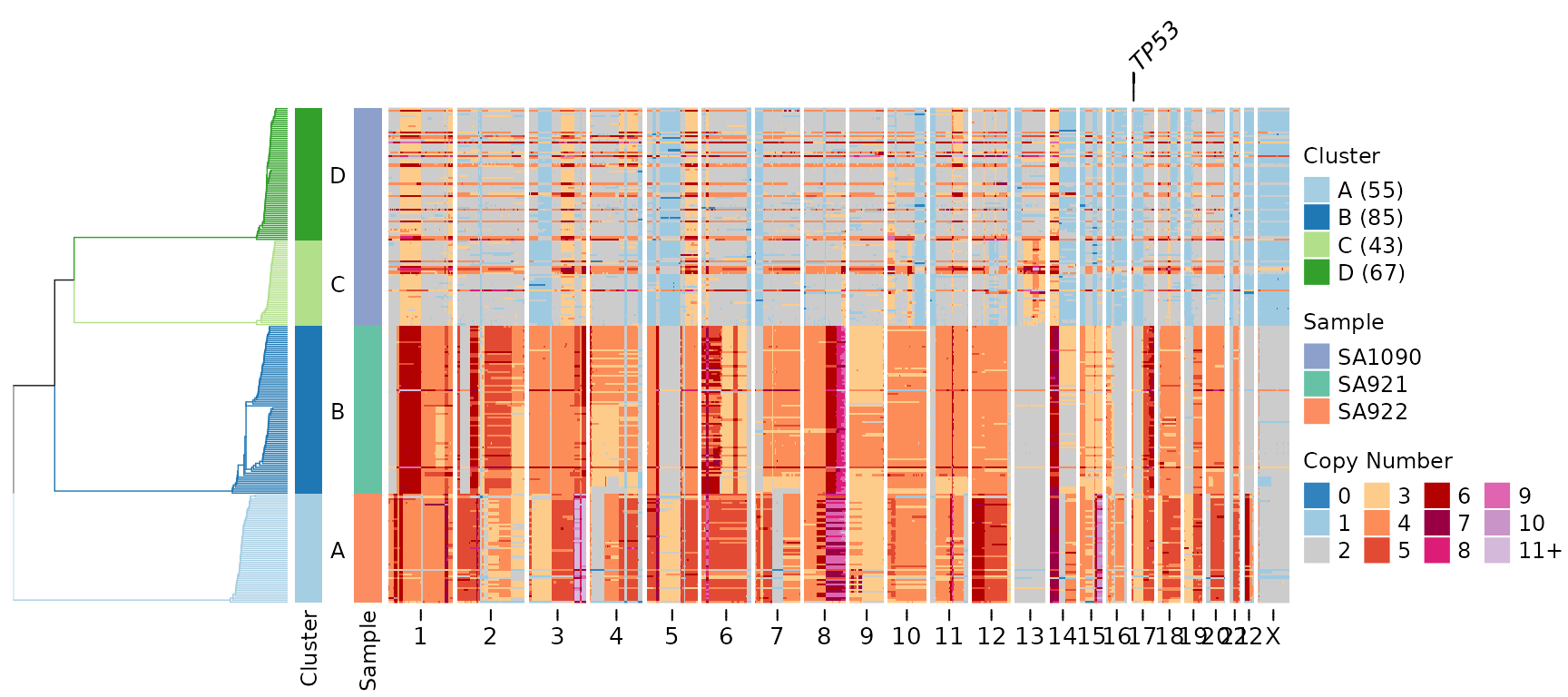

Let’s highlight the TP53 tumor suppressor gene:

plotHeatmap(CNbins,
            gene_annotations = "TP53",
            tree = clustering$tree,
            clusters = clustering$clustering)

A line connecting the gene label to its genomic position appears above the heatmap. This makes it easy to identify where specific genes are located relative to the copy number changes.

Multiple Gene Annotations

We can highlight multiple genes simultaneously:

plotHeatmap(CNbins,
            gene_annotations = c("TP53", "MYC", "KRAS", "BRCA1"),
            tree = clustering$tree,
            clusters = clustering$clustering)

Customizing Gene Labels

You can adjust the appearance of gene annotations:

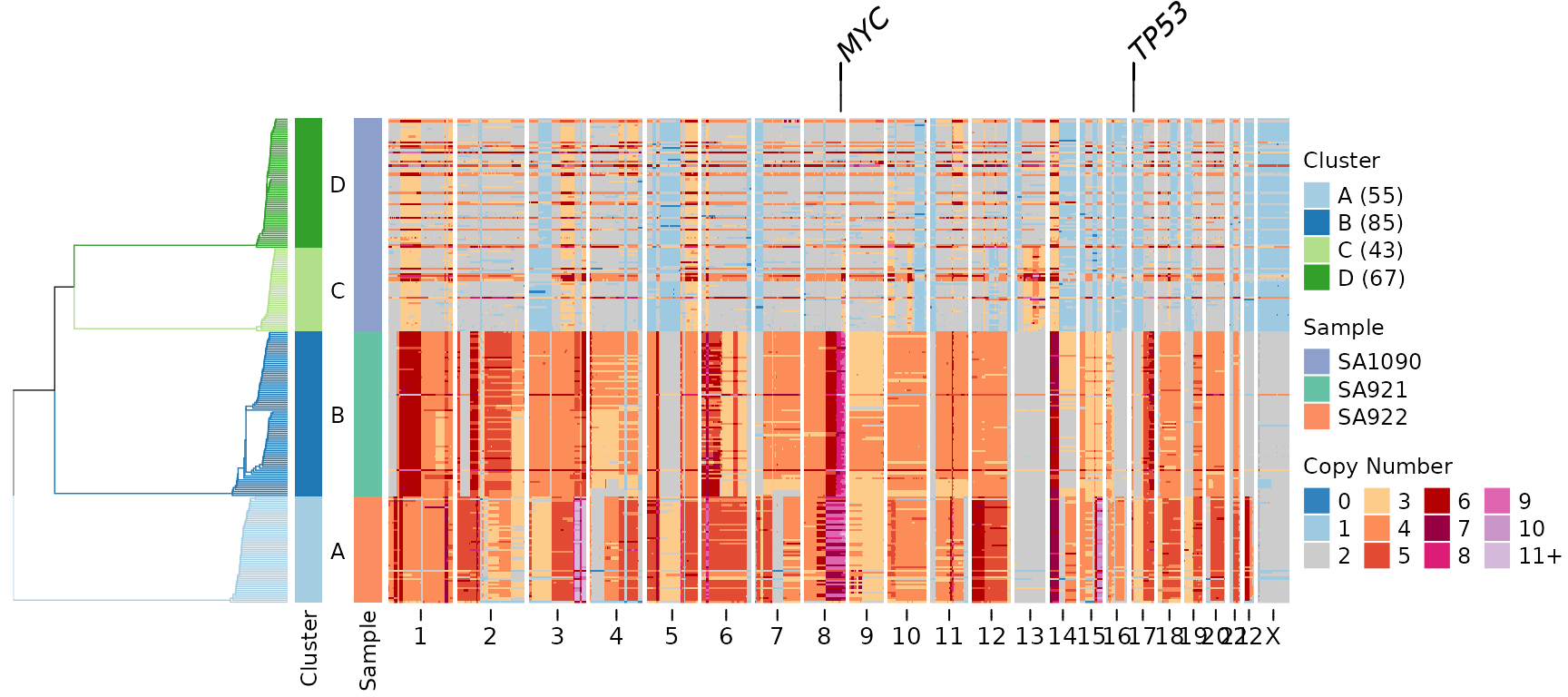

plotHeatmap(CNbins,
            gene_annotations = c("TP53", "MYC"),
            gene_annotation_fontsize = 12,
            gene_link_height = 8,
            tree = clustering$tree,
            clusters = clustering$clustering)

Key parameters: - gene_annotation_fontsize: Controls the size of gene labels (default uses annofontsize) - gene_link_height: Height of connector lines in mm (default is 5 mm)

Gene Annotations with Frequency Plot

Gene annotations can be combined with other annotations like the frequency plot, which shows how many cells have copy number changes at each genomic position:

plotHeatmap(CNbins,
            gene_annotations = c("TP53", "MYC", "KRAS"),
            plotfrequency = TRUE,
            frequencycutoff = 2,
            tree = clustering$tree,
            clusters = clustering$clustering)

In this visualization: - Gene labels appear at the very top - Below that is the frequency plot showing recurrence of copy number changes - The heatmap shows individual cell profiles

Chromosome Ideogram Visualization

The plotideogram parameter adds a visual representation of chromosome structure at the bottom of the heatmap, including cytoband patterns and centromeric regions.

⚠️ Important: The plotideogram parameter requires plotallbins = TRUE to display all genomic bins including centromeric regions.

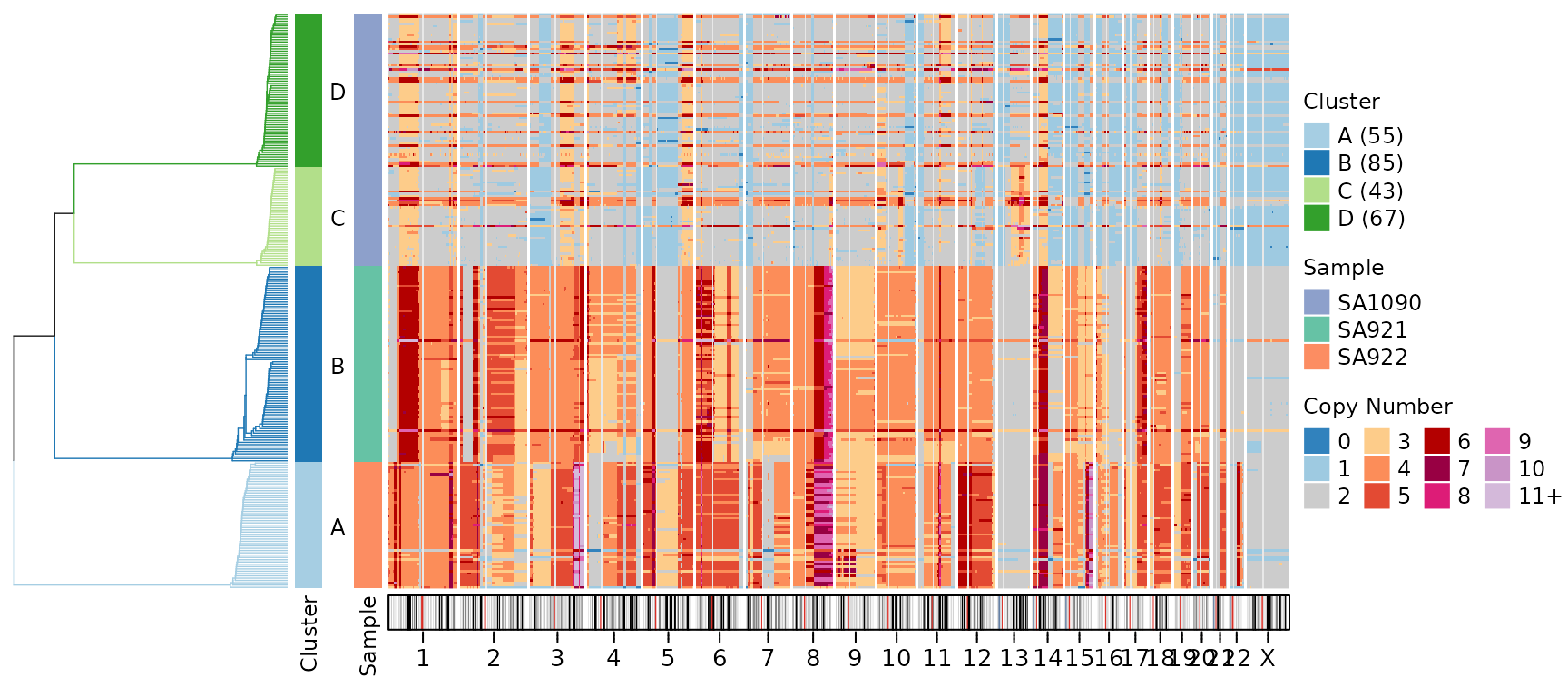

plotHeatmap(CNbins,
            plotallbins = TRUE,
            plotideogram = TRUE,
            tree = clustering$tree,
            clusters = clustering$clustering)

The ideogram shows: - Chromosome bands: Different cytogenetic regions (displayed as colored bands) - Centromeric regions: Light grey areas where coverage is typically low or absent - Chromosome structure: Provides genomic context for interpreting copy number changes

Combining All Features

Here’s the complete visualization combining all new features:

plotHeatmap(CNbins,
            gene_annotations = c("TP53", "MYC", "KRAS"),
            plotallbins = TRUE,
            plotideogram = TRUE,
            plotfrequency = TRUE,
            frequencycutoff = 2,
            tree = clustering$tree,
            clusters = clustering$clustering)

This comprehensive visualization shows: 1. Top: Gene labels for key cancer-associated genes 2. Upper middle: Frequency plot showing recurrent copy number changes 3. Center: Individual cell copy number heatmap 4. Bottom: Chromosome ideogram with cytoband and centromere information

This arrangement provides multiple levels of information: individual cell profiles, population-level recurrence patterns, genomic context, and functional annotation (genes).

Customization Options

Genome Assembly

By default, the package uses hg19 (GRCh37) for gene positions and cytoband information. You can switch to hg38 (GRCh38):

plotHeatmap(CNbins,
            gene_annotations = "TP53",
            genome = "hg38",
            tree = clustering$tree,
            clusters = clustering$clustering)

Ideogram Height

Adjust the height of the ideogram annotation:

plotHeatmap(CNbins,
            plotallbins = TRUE,
            plotideogram = TRUE,
            ideogram_height = 0.5,
            tree = clustering$tree,
            clusters = clustering$clustering)

The ideogram_height parameter specifies height in cm (default is 0.3 cm).

Centromere Color

Customize the appearance of centromeric regions:

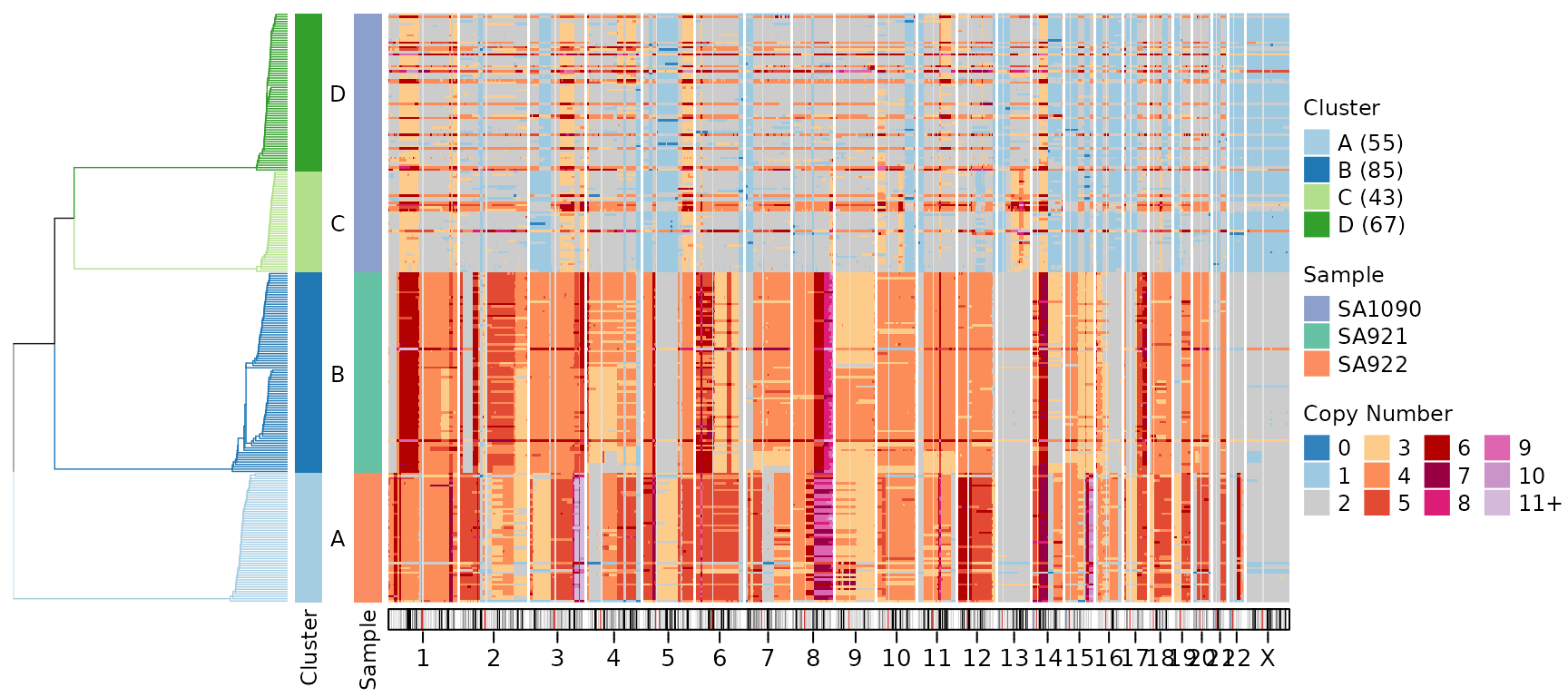

plotHeatmap(CNbins,
            plotallbins = TRUE,
            plotideogram = TRUE,
            centromere_col = "#E0E0E0",
            tree = clustering$tree,
            clusters = clustering$clustering)

Practical Use Cases

Cancer Genomics

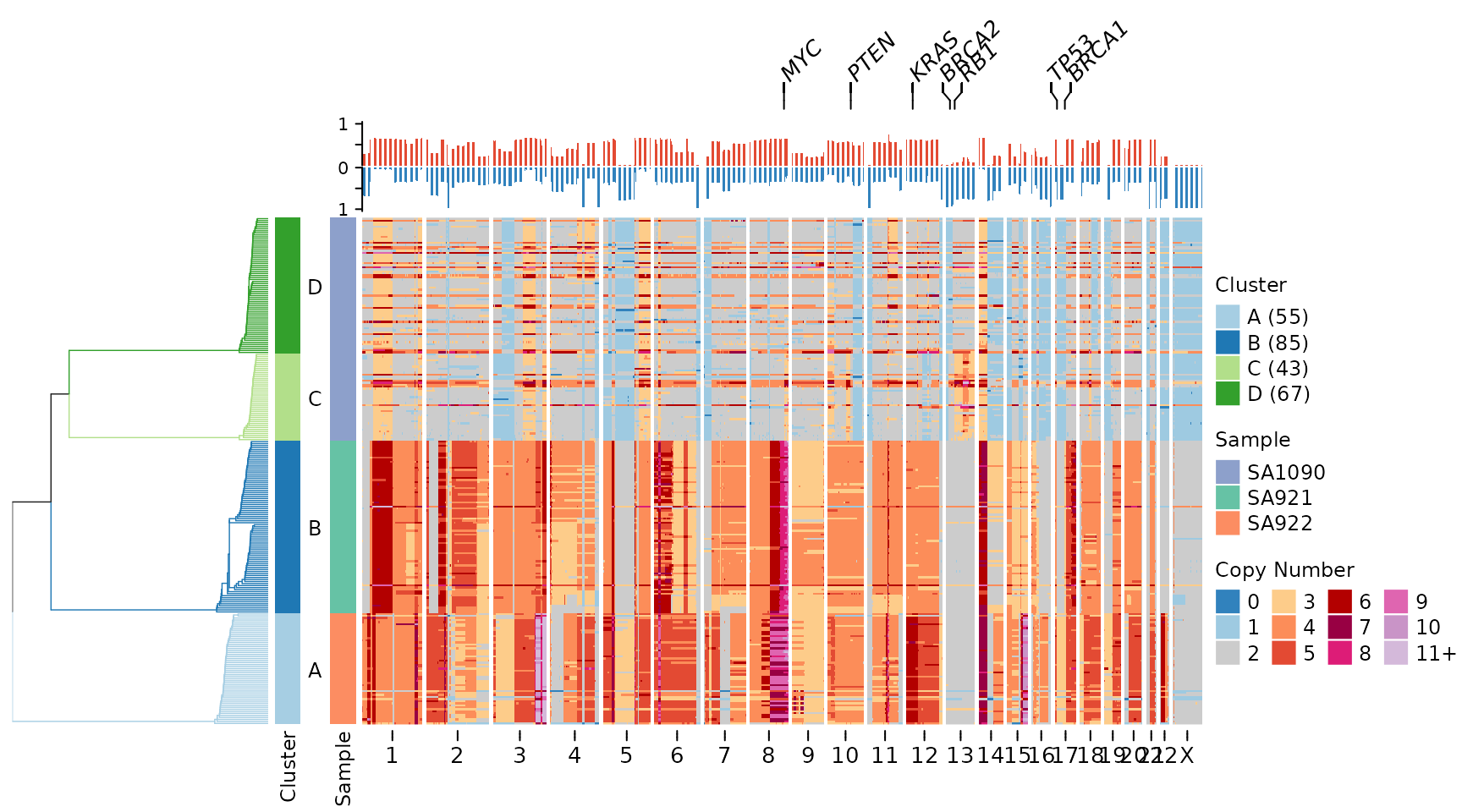

Highlight common tumor suppressors and oncogenes:

cancer_genes <- c("TP53", "RB1", "PTEN", "BRCA1", "BRCA2", "MYC", "KRAS", "PIK3CA")
plotHeatmap(CNbins,
            gene_annotations = cancer_genes,
            plotfrequency = TRUE,
            frequencycutoff = 3,
            tree = clustering$tree,
            clusters = clustering$clustering)

Focused Chromosomal Region

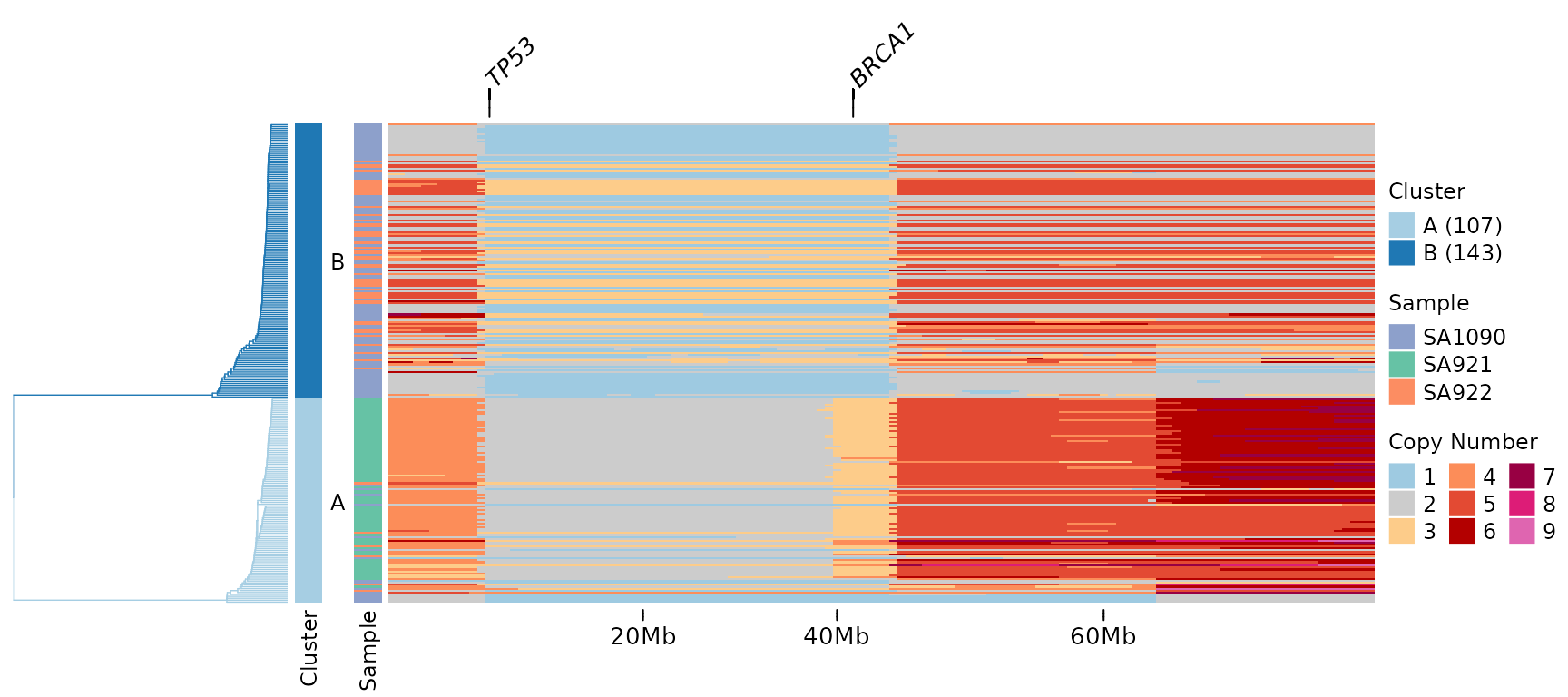

Display a specific chromosome with gene annotations:

# Filter to chromosome 17
CNbins_chr17 <- CNbins[CNbins$chr == "17", ]
clustering_chr17 <- umap_clustering(CNbins_chr17, field = "copy")

plotHeatmap(CNbins_chr17,
            gene_annotations = c("TP53", "BRCA1"),
            tree = clustering_chr17$tree,
            clusters = clustering_chr17$clustering)
